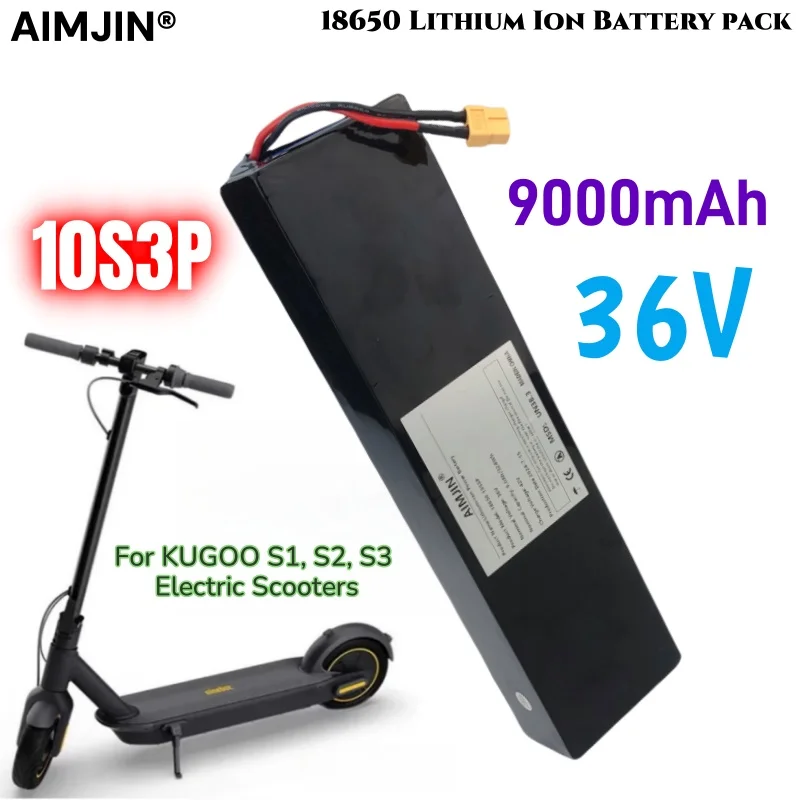

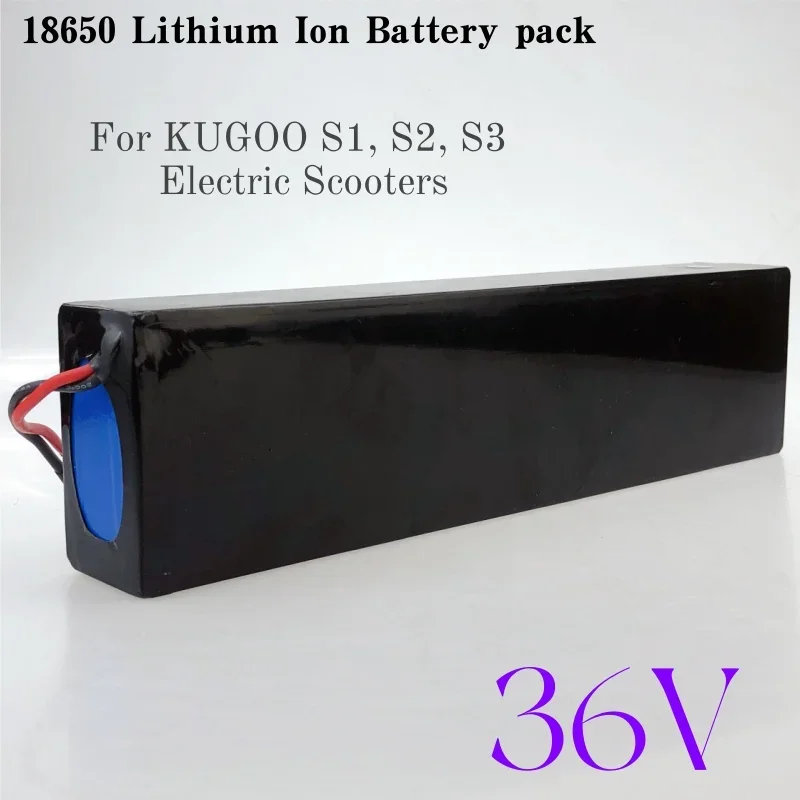

10S3P 36V 9Ah 18650 rechargeable lithium-ion battery 500W built-in BMS

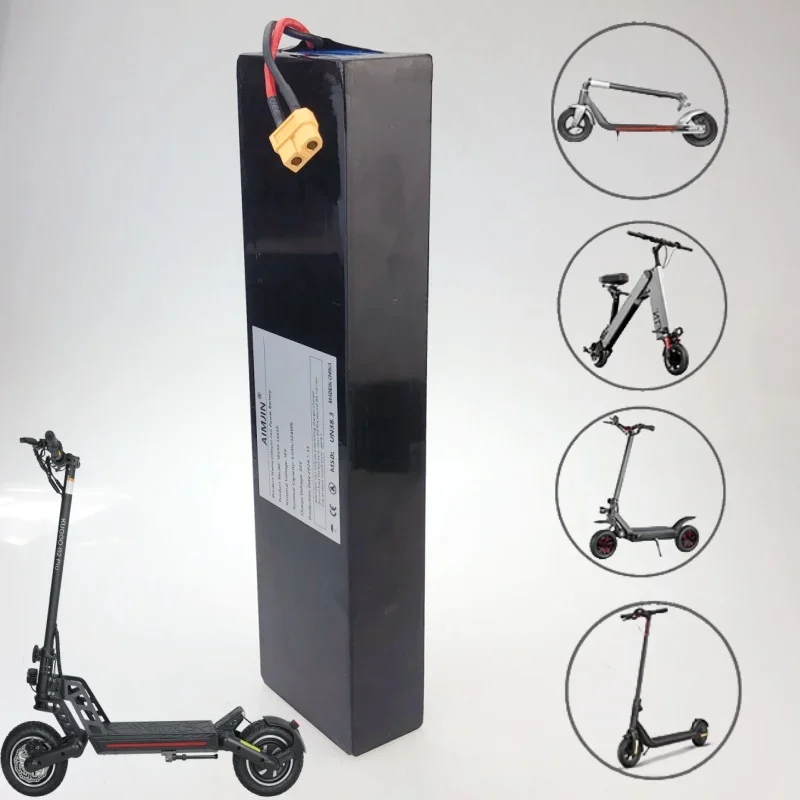

for KUGOO S1, S2, S3 Electric Scooters

Specifications:

Model: 18650-10S3P

Cell count: 30 pieces(10S3P)

Nominal voltage: 36V

Charge voltage: 42V

Typical capacity: 9.0Ah

Rated power: 1000W

BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.

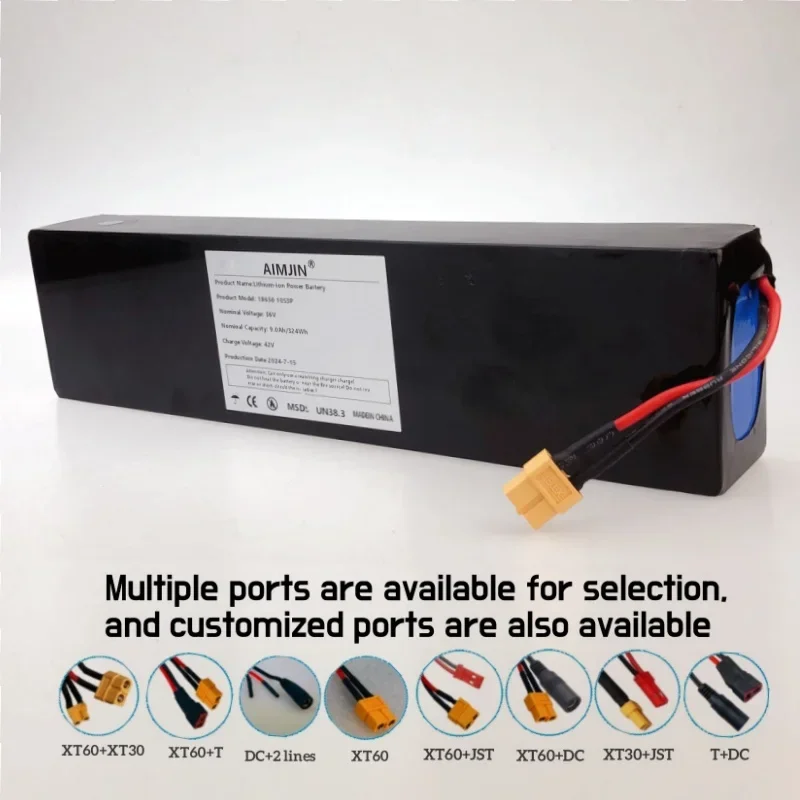

Connector: T plug for discharge and DC5521 for charge

Package: heat shrinkable PVC, random color

Output voltage range: 28V-42V

Discharge cut-off voltage: 28V

Charge cut-off voltage: 42V

Charge method: CC-CV

Max. Charge current: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 1000 cycles

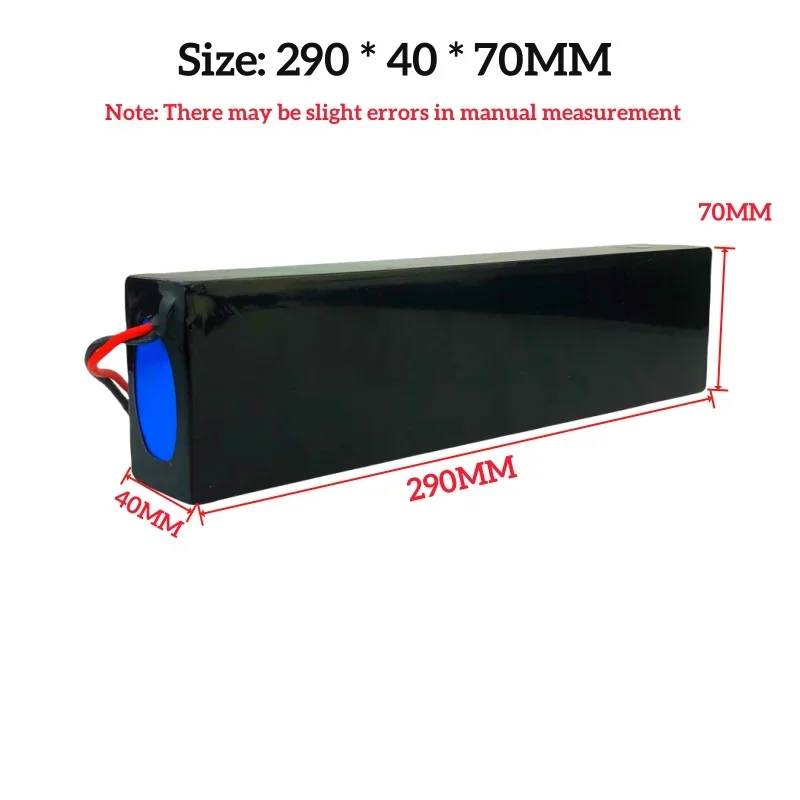

Size: 290 * 70 * 40 mm(±3mm)(Note: Manual measurement may have certain errors)

Weight: about 1415g(±50g)

Welcome to purchase, fast delivery, project as described:

1. In order to ensure fast delivery of packages, our store generally defaults to using logistics such as DHL for shipping. Due to certain factors, some countries may not be able to send DHL, so we will use other air freight methods for shipping.

2. Packages within 1KG in Poland, Germany, the United States, South Korea, and Japan will take approximately 10-15 days to arrive.

3. The transportation time for EU countries is approximately 15-25 days for delivery.

4. Due to the fact that batteries are dangerous goods, the transportation of packages is different from regular goods and requires a longer time.

5. Batteries are classified as dangerous goods and require professional logistics channels for transportation. Please check and track your package on the following logistics website: https://www.17track.net/zh-cn

Regarding logistics consultation, please do not raise any disputes. Please contact our staff to assist with tracking. We will provide you with services as soon as possible.

Picture display:
